Marine Grade Wire > Marine Battery Cable | 1 AWG Battery Cable UL
1 AWG Tinned Marine Battery Cable Boat Wire BLK /ft
This item sold by the foot in a continuous length
One of the primary concerns of professional technicians is cable flexibility. Marine applications are characteristically in enclosed areas with sharp turns. The less flexible the cable, the more difficult the job will be. The two factors effecting a cable’s softness are its stranding and its insulation. Our UL listed marine battery cable is made of type III rope stranded tinned copper and is insulated with a pliable yet durable, specially formulated compound. It maintains key physical and electrical resistance properties while providing sure power delivery and unparalleled quality. The electro plated tinned copper resists corrosion, extending the life of your cables and connected equipment.
FEATURES:
• Finely stranded tinned copper conductor (Type III)

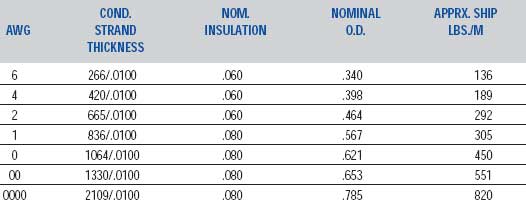

• Color coded PVC insulation (See chart for specifics per gauge)
• Temperature Range: -20°C to 105°C
• Voltage Rating: 600V
• Resistant To: Acid, Alkalis, Abrasion, Flame, Gasoline, Oil, Ozone, Moisture, Fungus
• Applications: Connecting battery or generator to switch, starter or ground Windlass, Inverter or any high amperage equipment
COMPLIANCES:
UL Standard 1426 (BC-5W2)
AWM 1232/1283 (6-2 AWG)
AWM 1232/1284 (1 AWG - 4/0)
CSA: TEW
ABYC: E-8.14, E-9.14
Coast Guard: 33 CFR part 183 Subpart I
NMMA
Specification sheet will appear above if available.
Simply click image to enlarge.
